Description

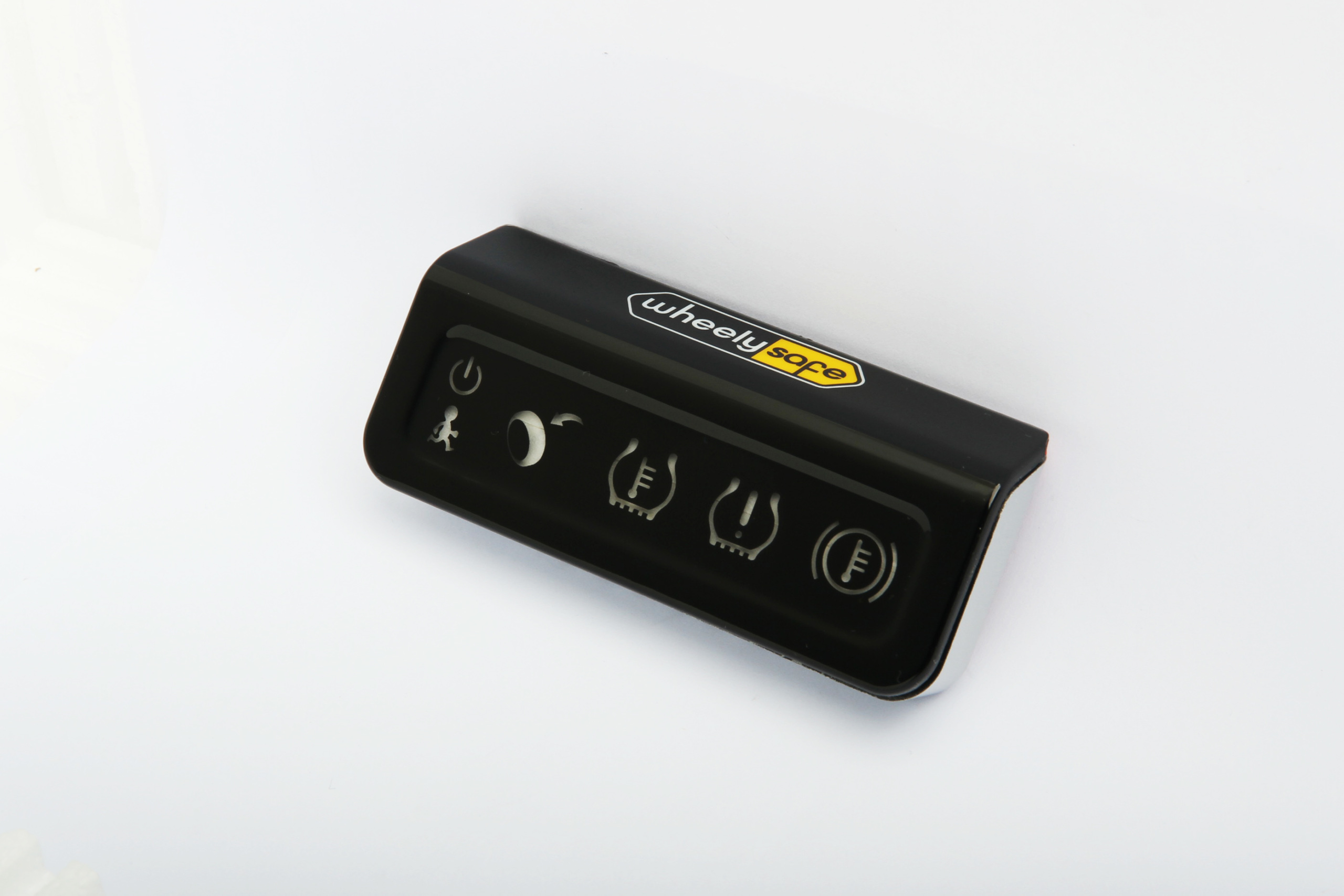

Solar Receiver (RS)
- Easy Fit Solar Receiver
- Wireless in-cab Receiver for vehicles that achieve 8hrs+ per day in daylight
- Fitted to inside of windscreen with solar panel exposed to daylight
- Rechargeable internal battery 670mAh supported by solar panel
- Memory capacity of 34 TPMS sensors and 34 wheel loss sensors
- Activated and de-activated by PC after fitting on inner windscreen
- Power icon illuminates every 20 seconds to confirm activated
- Auto-pairs with sensors during journeys. Sensors remain on memory until not seen for three journeys
- 72-hour mode activated after 15 mins when vehicle parked up (no motion)
- Transmissions received from sensors give Visual and Audible alerts to the driver
Wired Receiver (RW)
- Simple wiring fit for vehicles that are often exposed to less than 8 hours daylight
- Hard wired in the cab to 12V or 24V vehicle electrical system and adhered to an area visible to the driver
- Power icon illuminates every 20 seconds to confirm activated
- Rechargeable internal battery 120mAh to support 72 hour mode
- Memory capacity of 34 TPMS sensors and 34 wheel loss sensors
- Auto-pairs to sensors during journeys. Sensors remain on memory until not seen for three consecutive journeys
- 72-hour mode activated after 15 mins when vehicle parked up (no motion)
- Transmissions received from sensors gives Visual and Audible alerts to the driver
Battery Booster (BB)
- Easy Fit Battery Booster
- Used to boost sensor signals on long/shielded vehicles to boost signal to the Receiver. Also used on trailers.
- Fitted to the underside of chassis
- Powered by 3 x 19,000mAh Internal batteries designed battery life of 3 – 5 years
- Memory capacity of 34 TPMS sensors and 34 wheel loss sensors
- Activated and de-activated by PC held over the power dock recess (under development to change this to turn on with tape removal, there will be no turn off)
- Battery level indicated on PC when offered up to the battery booster
- Monitors and transmits sensor activity during 72-hour mode
