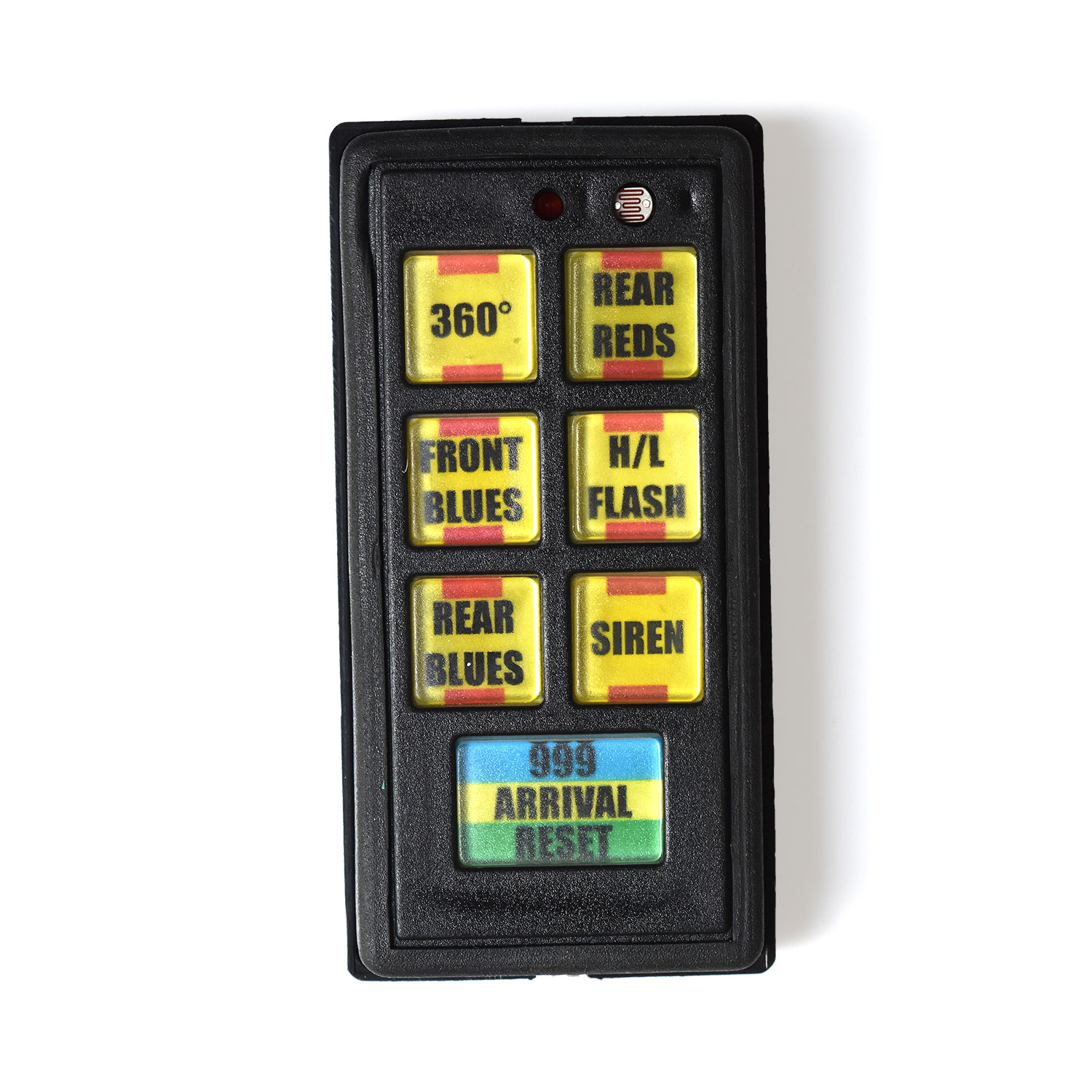

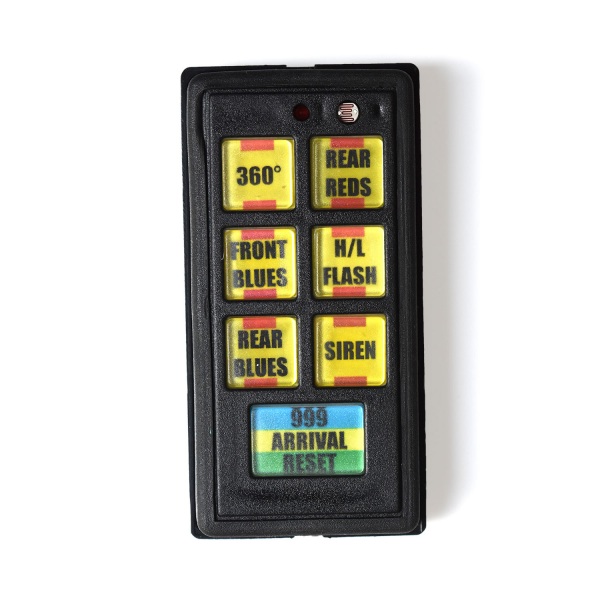

Micro-Link Switch Panel

The Micro-Link packs in most features of the Opti-Link, but in a small, handy package, ideal for use in less equipped vehicles such as general purpose cars and covert vehicles. The Micro-Link offers six individual switches and a triple function 999, Arrival and Reset switch.



IMPORTANT: When placing an order online, please download the template available in ‘Attachments’ section of the product page. Once completed, please send to Woodway, including your website order number in order for us to process your order as efficiently as possible. You can also find a list of our standard legends to customise your switch panel.
Limited availability, our sales team will advise delivery status once you add to basket. If your delivery expectations are not met, the product can be removed and you will no longer be charged.
This product is currently out of stock. Please complete enquiry form below and our sales team will contact you directly regarding product delivery status.
Special order only. Please complete enquiry form below and our sales team will contact you directly regarding product delivery status.

Description

  • Individual switches with clear interchangeable legends
  • All available legends can be viewed in the ‘Attachments’ section of the product page
  • Bespoke legends available at an additional cost
  • Back lighting on switches
  • Auto-dim of switches in low-lighting for minimal distraction at night
  • Low battery volts visual warning
  • Audible and visual warnings to confirm a switch is active
  • Sleep mode enabled
  • Walk Test function, to confirm system is working
  • 6 x 5 amp outputs with maximum load of 15 amps
  • This product includes relay board

Additional information

Weight 0.11 kg
Dimensions 10 × 4.9 × 2 cm
Voltage

12V
