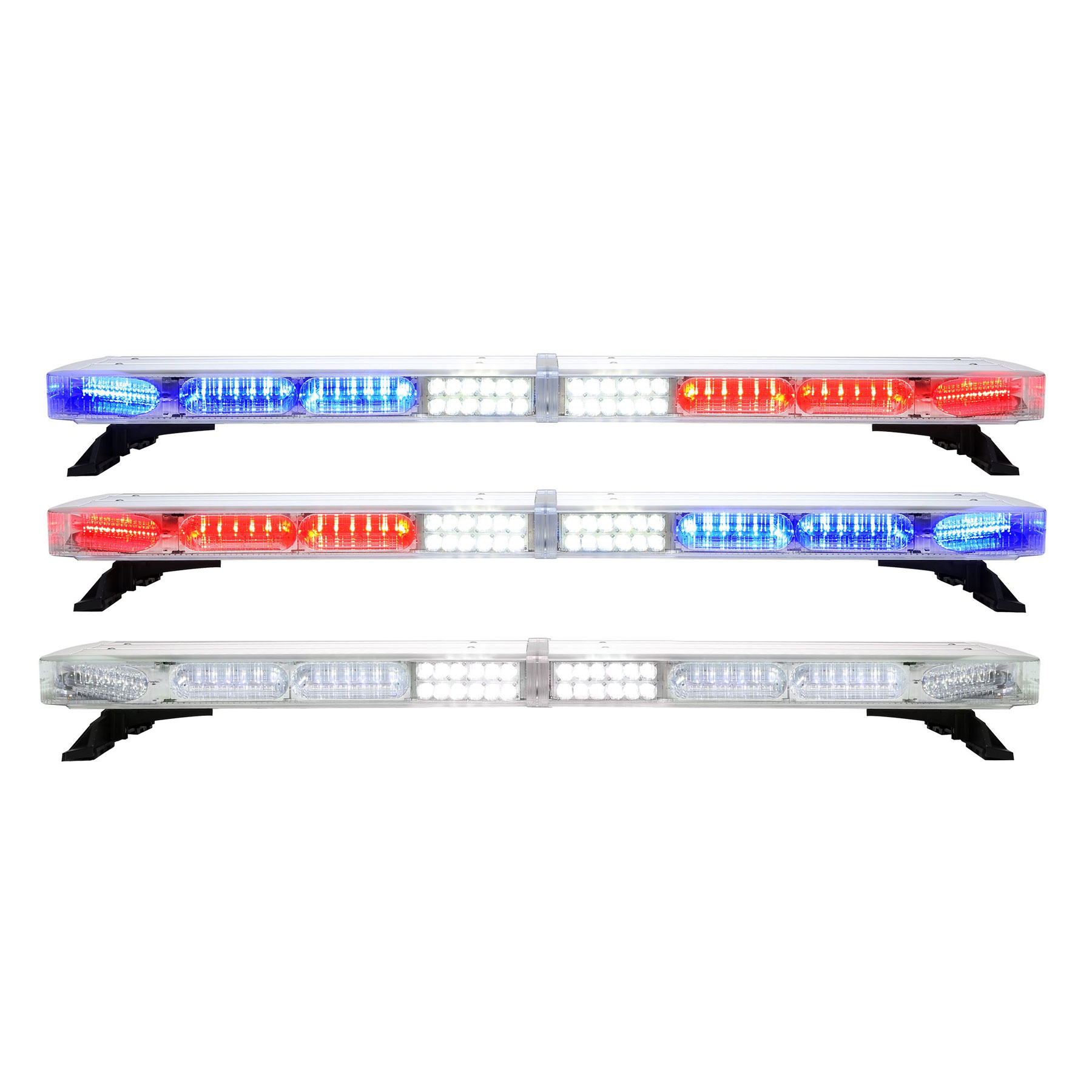

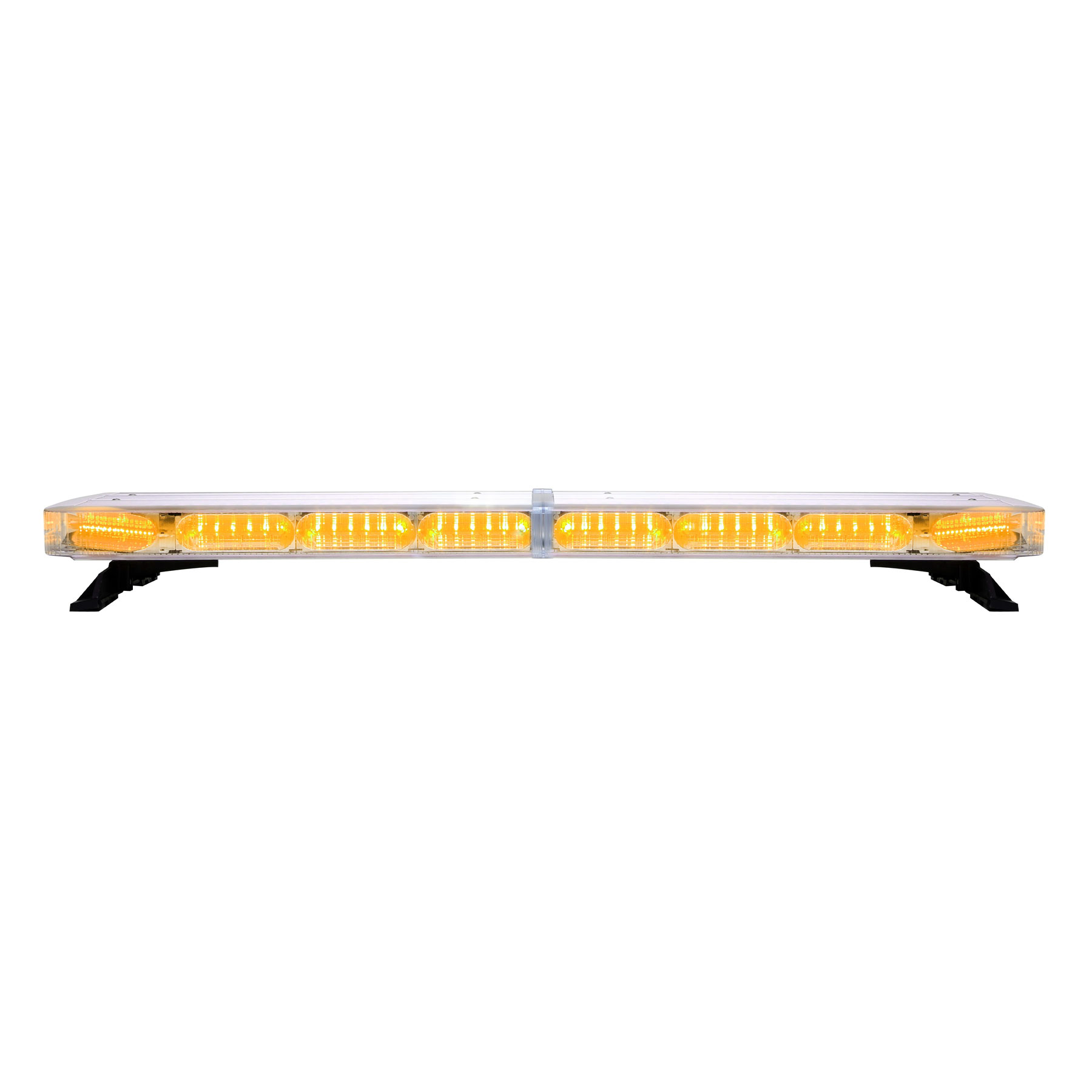

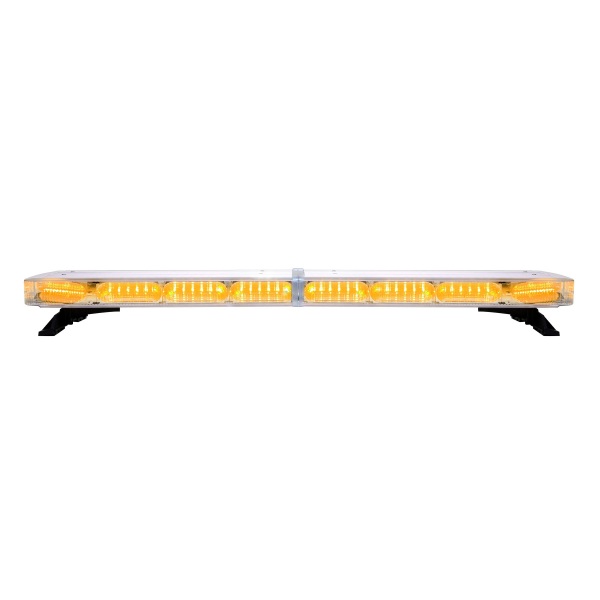

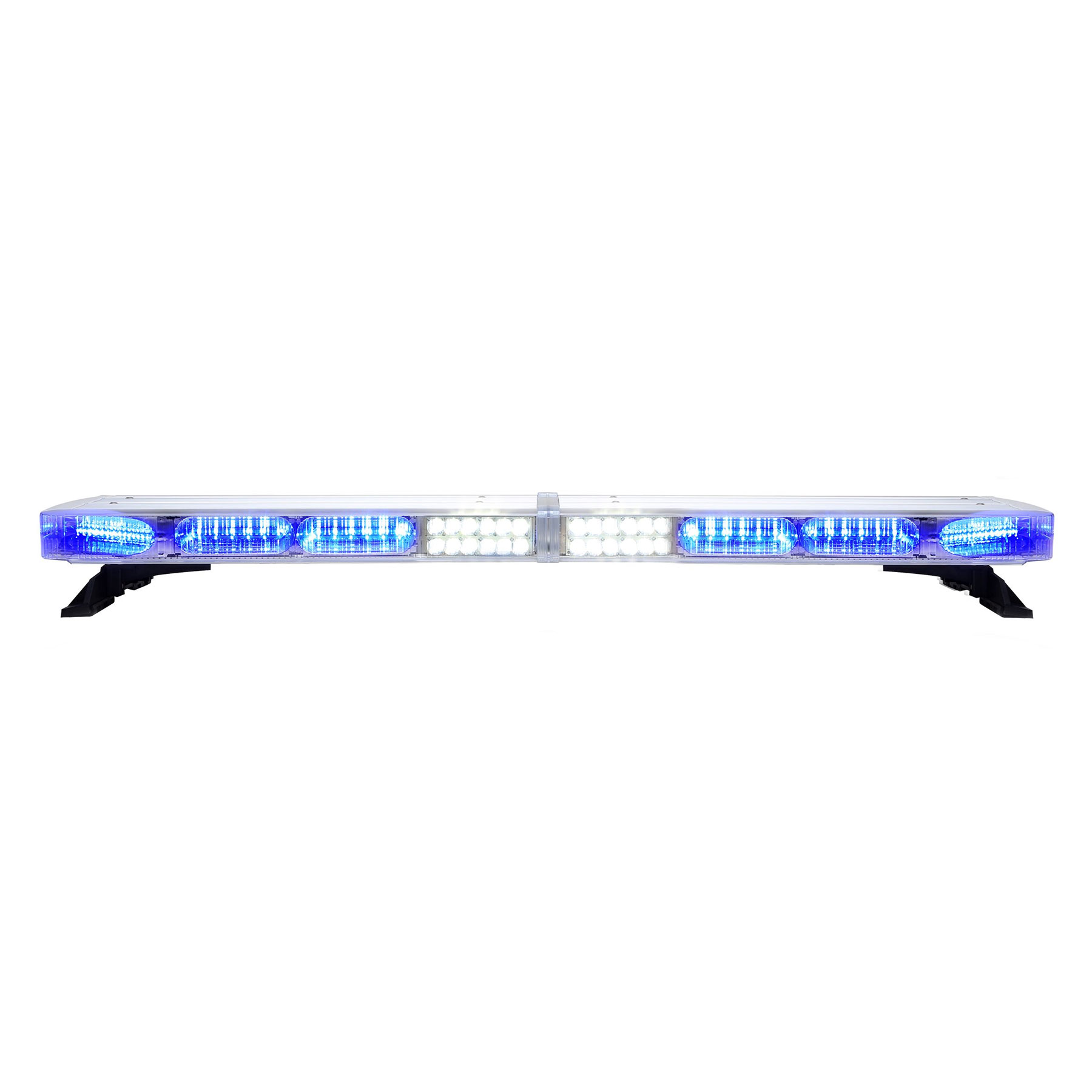

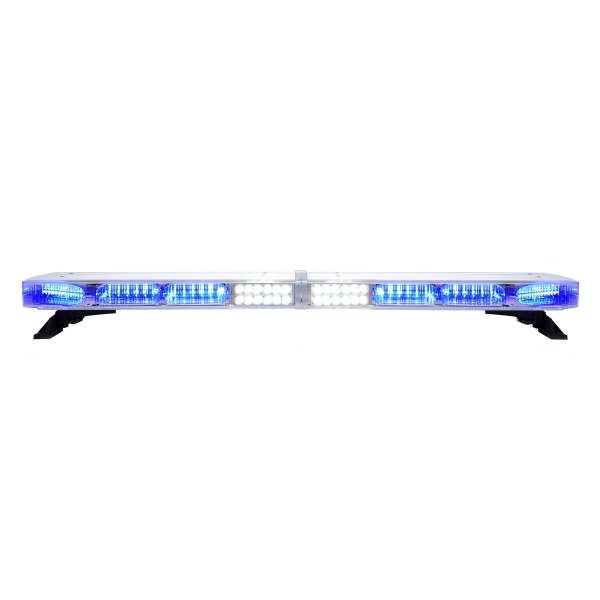

Liberty™ II Series

The next generation Liberty™ bar is the favourite of emergency services across the world, engineered with improved optic technology for unrivalled quality and light output. The Liberty™ II builds on the excellent reputation of the Liberty™, with an enhanced performance of 30% more illuminated surface area lasting the lifetime of the vehicle.



IMPORTANT: Before placing a lightbar order online, we recommend viewing the ‘Lightbar Specifications’ document on the ‘Attachments’ tab below. This will ensure that you choose the best possible specification to meet your requirements. Our team will be in touch to confirm lead times for build and delivery once your order has been placed.
PLEASE NOTE: the Bars are supplied with MKEZ7 polycarb mounting feet as standard, if you required an alternative mounting option please contact our Sales Office for details.

Availability of Blue Light products is restricted. Please login if you already have access to allow you to view prices and make a purchase or contact us for further information.

Description

  • Whelen’s patented Collimator™ optic design
  • Advanced Thermal Design improves LED performance during extended use
  • Aluminium tops and extruded aluminium platform to maximise protection
  • Centre dividers with liquid injection moulded seals protect internal components from water

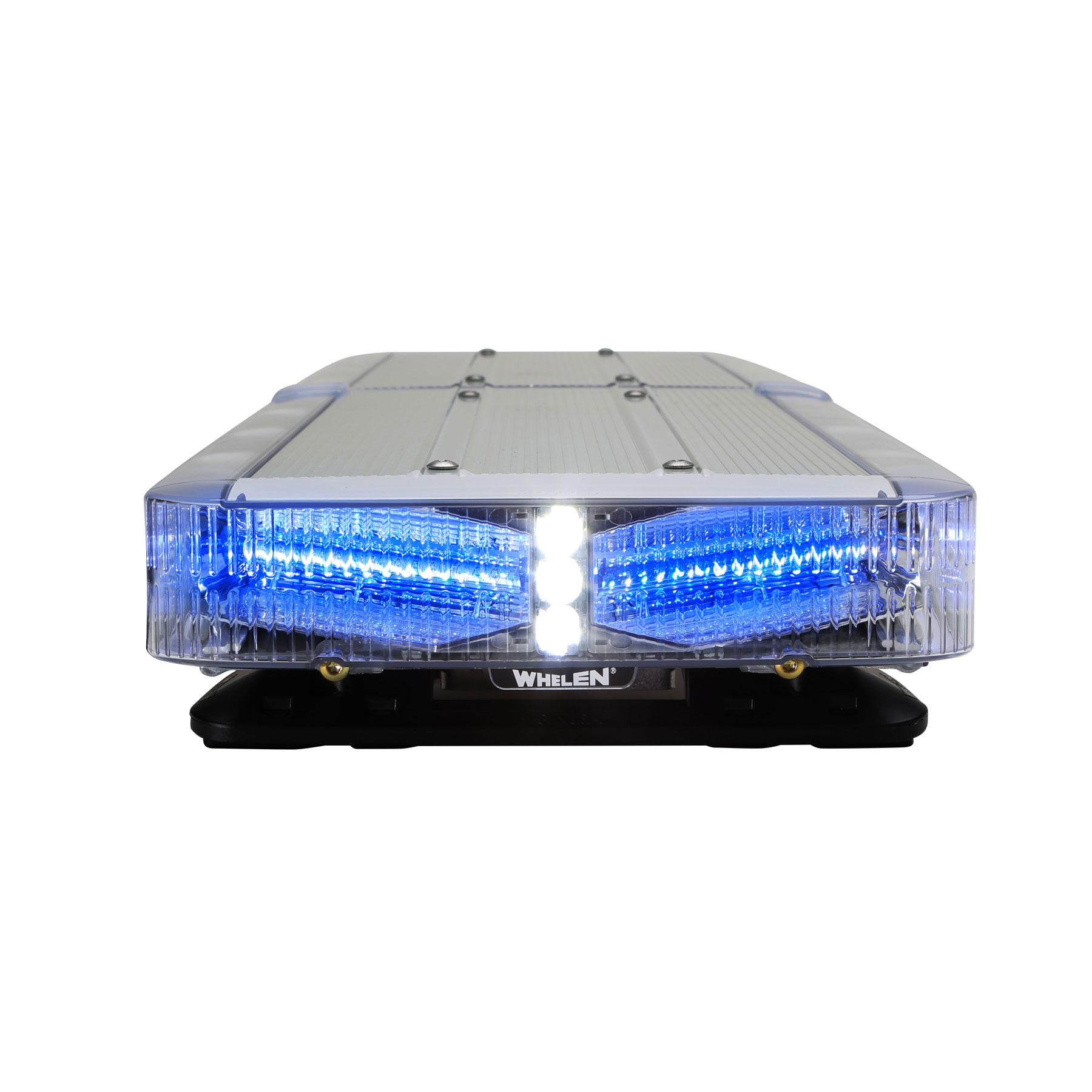

  • Newly designed alley module for contiguous light
  • Hard-coated domes minimise environmental damage
  • Clear, smoked or coloured domes
  • Available with standard or low-profile mounting feet
  • 24V available in Blue and Red Solo™ options only
  • Fully customisable – a choice of lightheads, alleys, take-downs and more
  • R65 configurations available
  • WeCan Module (WCCP) – The Control Point Module serves as the ‘brains’ of the Whelen WC Series lightbar and is only required when using a WeCan lightbar with a Whelen control system without a direct WeCan input, or any third party control system; this in-term acting as an interface between equipment.The module is programmed with the Whelen Command Software via the USB port and in turn, provides the necessary signals that allow the lightbar to function in the desired manner. As represented in the Command Programming software, each of the 18 inputs may be programmed to activate any number or combination of the installed lightbar components. This is accomplished by applying +12VDC to an input on the control system.IMPORTANT – It is not necessary to program this device unless changes to the default configuration are desired.

Additional information

Select Colour

Blue

Lightbar Length

44" Lightbar, 48" Lightbar, 54" Lightbar

Wecan Powered Lightbar (External WCCP Required)

Yes, No – WeCan Compatible Control System Required

Select Specification

IW4404R-4 (44"), IW44044R-4 (44"), IW4804R-4 (48"), IW4808R-4 (48"), IW5408R-4 (54"), IW54084R-4 (54")
