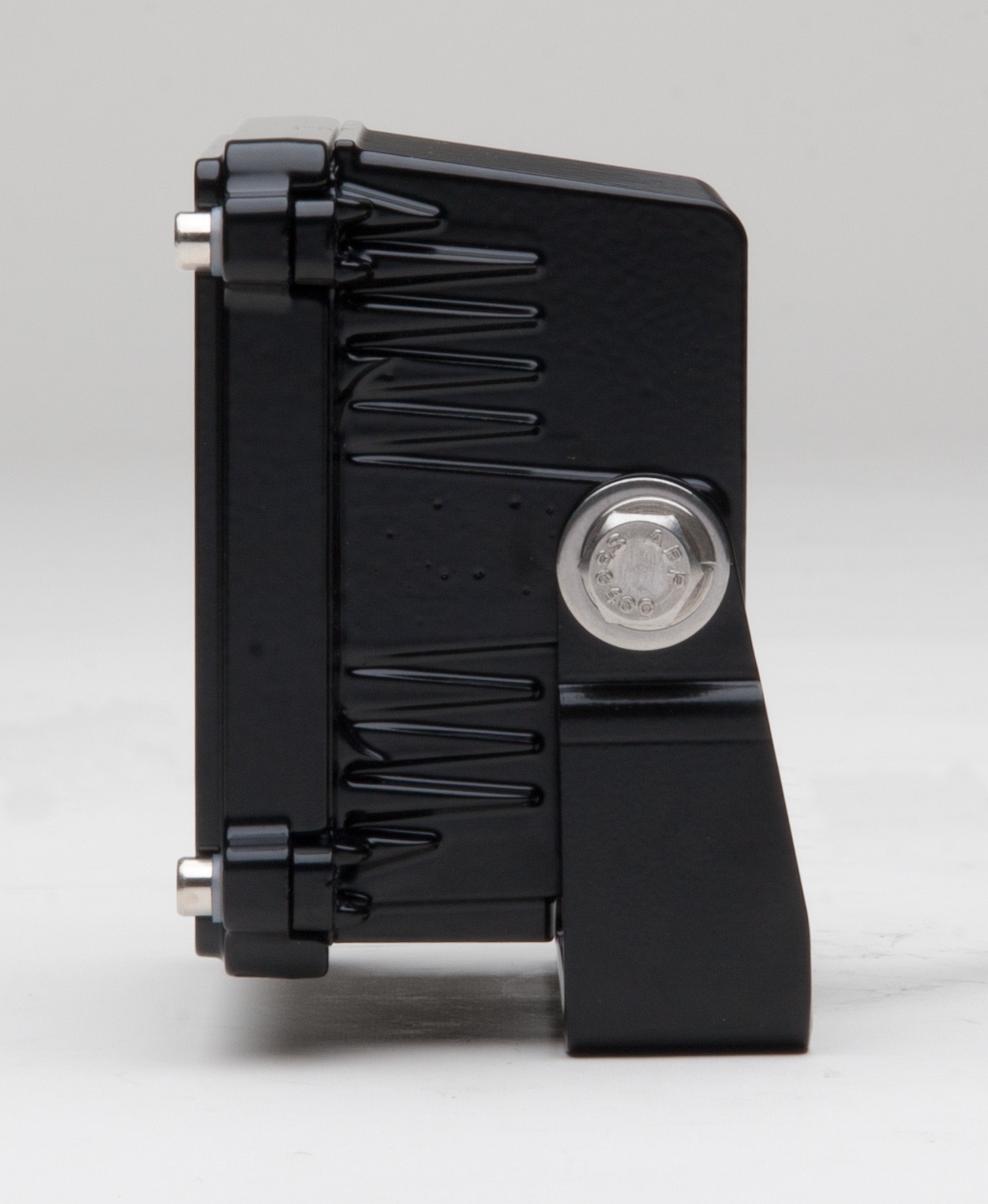

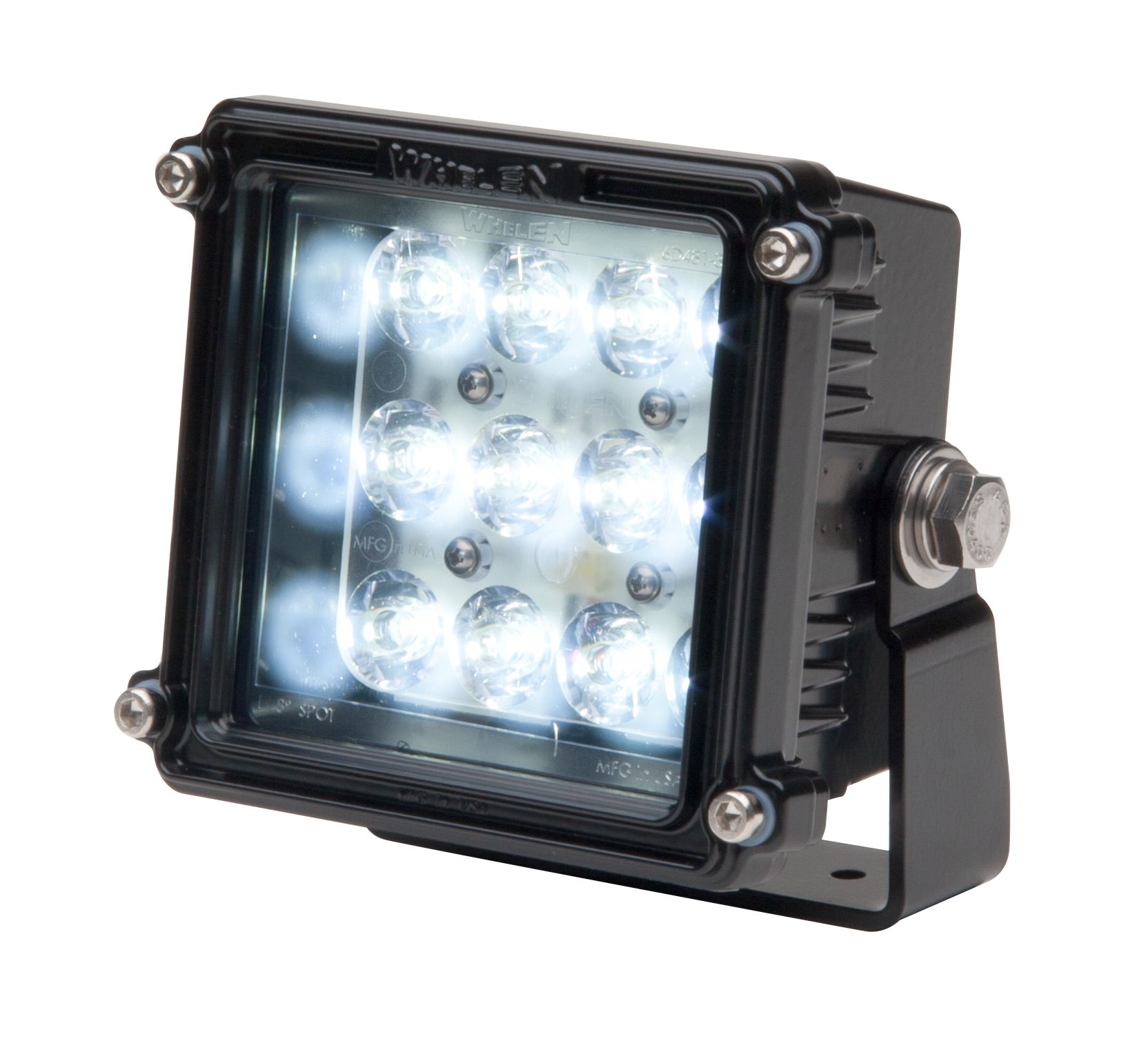

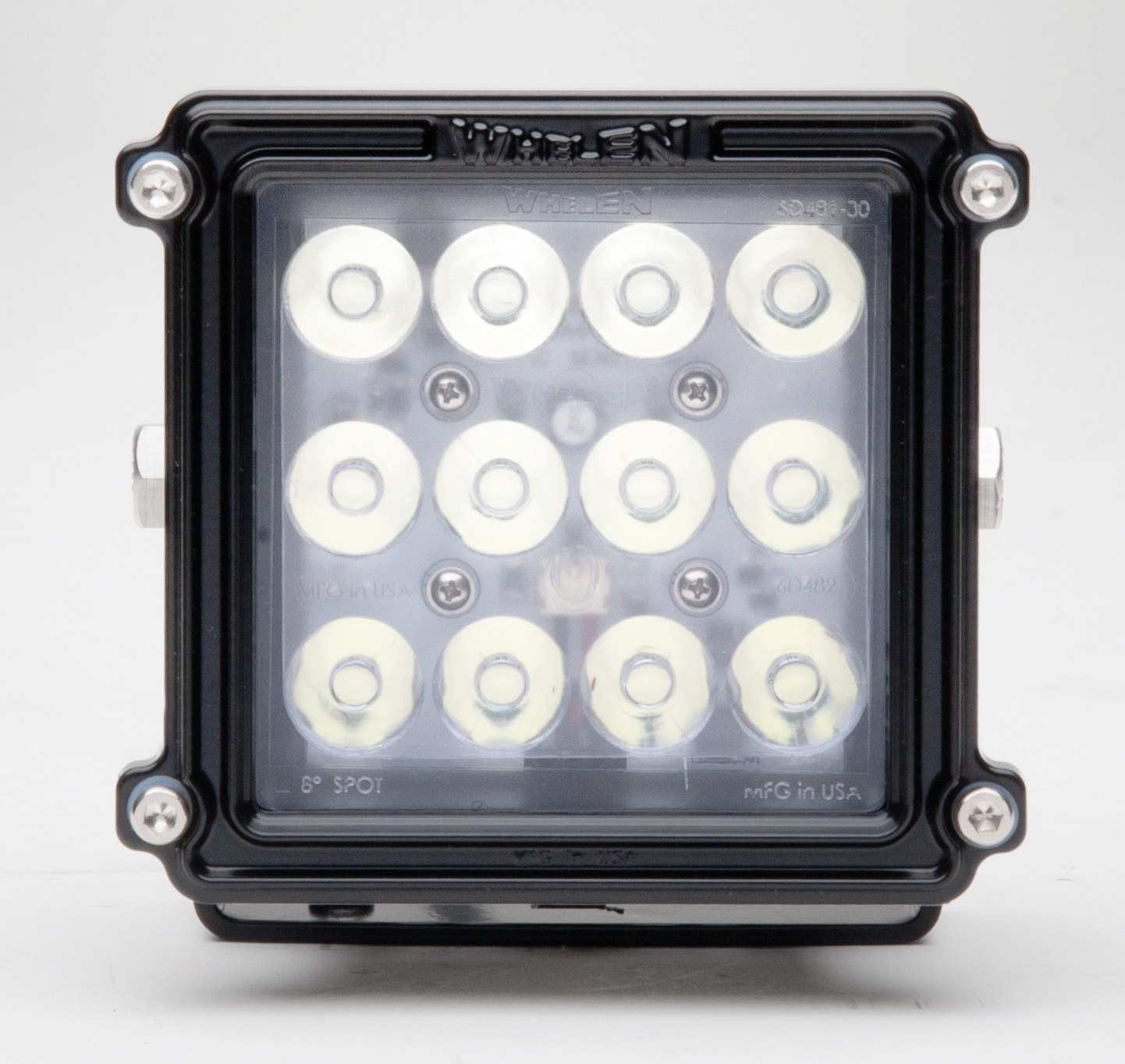

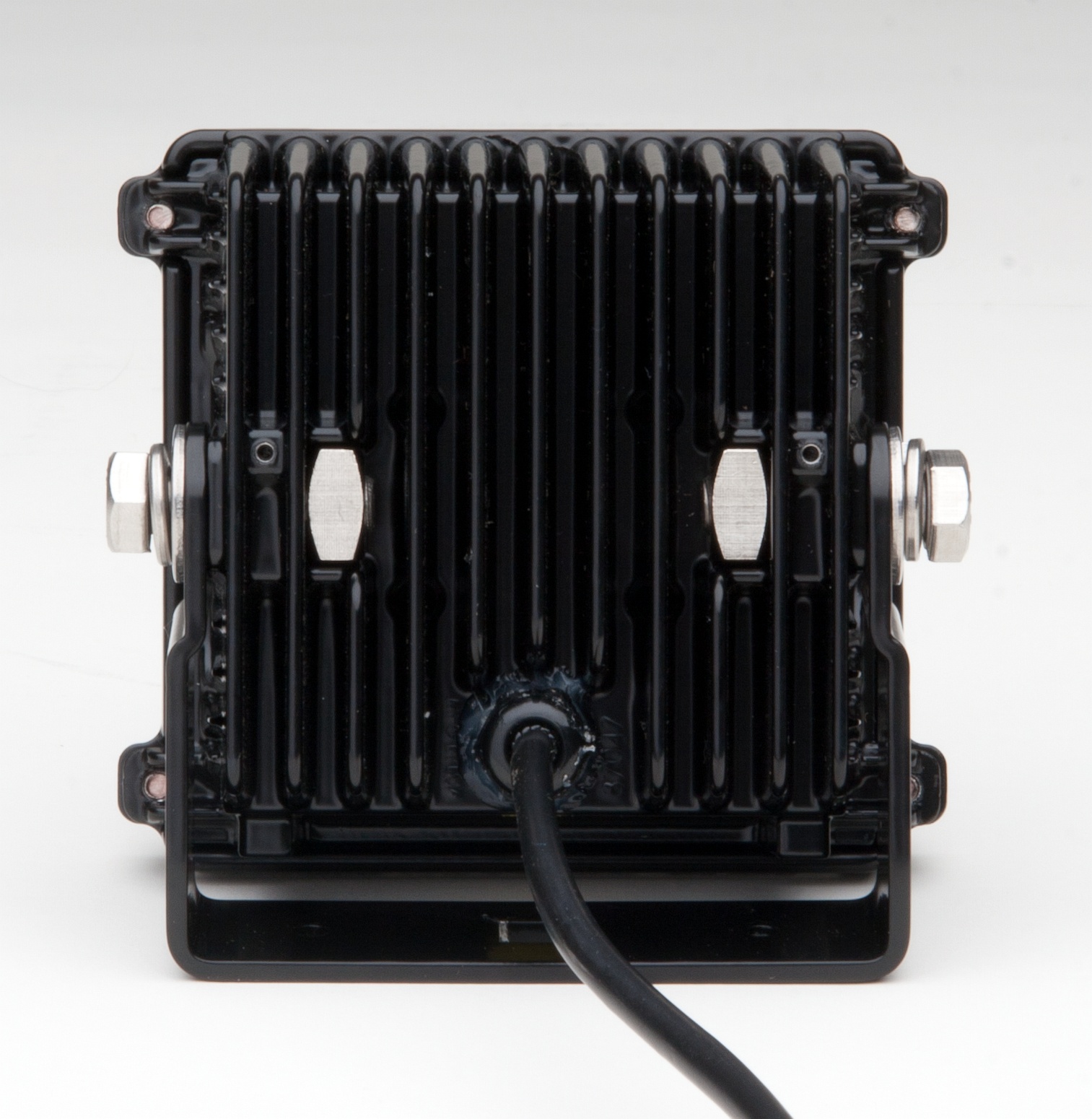

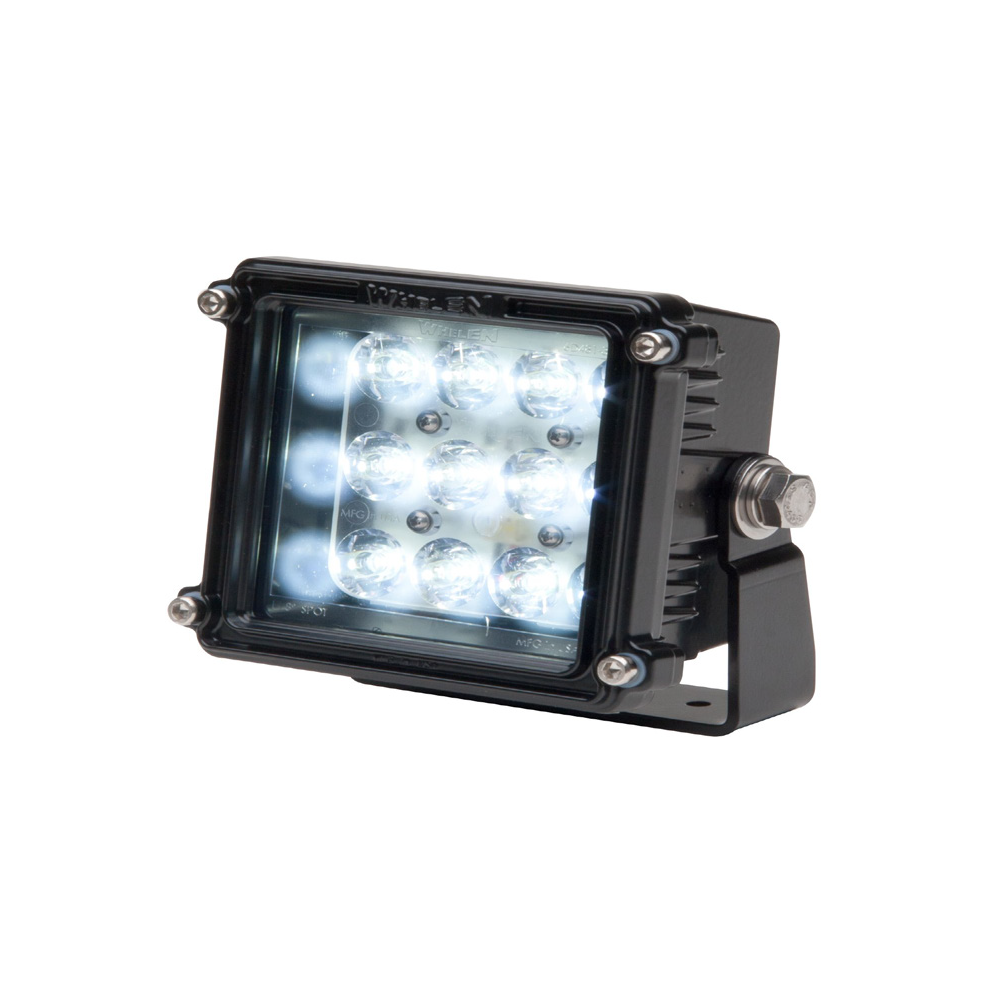

Pioneer Micro™

Built for the most challenging of applications: this Pioneer Micro™ has all the performance and added heavy duty, to fit almost anywhere on any vehicle.

Part Number


  • Injection moulded polycarbonate optic lenses are hard-coated to minimise environmental damage from sand, sun, salt, and road chemicals
  • Rugged, die-cast aluminium housing
  • Solid-state electronics are rugged and reliable
  • Rated to last thousands of hours with remarkable bright light
  • 8° spot spread pattern comes standard, along with three additional optic lenses for your choice of light pattern
  • Optic lens changes easily via four screws in picture frame fixture
  • Five other mounting options available including pedestal and recess mounts
  • Lumen Output – 5,695*
  • IP67 rated for dust and water resistance

Additional information

Weight 1.22 kg
Dimensions 12.1 × 10.8 × 7.3 cm
Part Number
